How to Set Up an Owncast Chat Overlay in OBS Studio

Introduction

Unlike major live streaming platforms, Owncast is a smaller self-hosted solution which gives you complete control over your stream. Using Owncast has a number of upsides and downsides, but one notable downside is the loss of access to common plug-and-play tools, like chat overlays for your stream. That doesn't mean it is impossible though, it just requires a little more hands-on configuration.

Setting up a chat overlay for an Owncast stream in OBS Studio is a common question in the Owncast community, so this blog post serves to share how I have my chat overlay set up and to explain how it works.

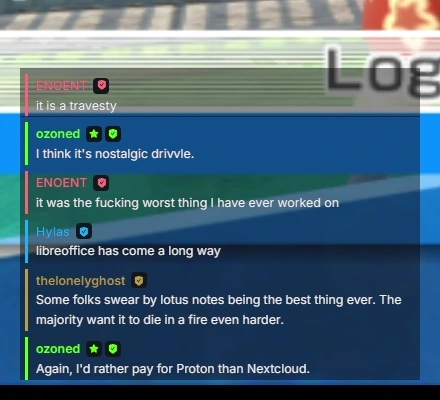

Example of the chat overlay in action.

Setting Up Owncast Chat in OBS Studio

Here's how to get a basic Owncast chat overlay set up in OBS Studio:

  1. Create a new Browser Source in your scene.
  2. In the URL field, enter https://<your domain here>/embed/chat/readonly/ where <your domain here> is replaced with the domain of your Owncast instance.
    • For example, for my Owncast instance, the URL is https://stream.logal.dev/embed/chat/readonly/.
  3. In the Width and Height fields, enter the desired values to match how much space you want the chat overlay to occupy on your stream. You will probably need to adjust these dimensions to get the right fit.
  4. In the FPS field, enter a value which matches the framerate you have configured in OBS Studio. For example, I stream at 60 FPS, so I set the value to 60.
  5. Finally, copy and paste the following content in the Custom CSS field:
    @keyframes fade {
    0% { opacity: 0; }
    2% { opacity: 1; }
    95% { opacity: 1; }
    100% { opacity: 0; }
}

body {
    background-color: #00000000 !important;
}

#chat-container {
    background-color: #00000000 !important;
}

#chat-container > div > div > div > div {
    background-color: #111111bb !important;
    animation: fade 60s forwards !important;
}
  6. That's it! Feel free to tweak the values until you get the look you want. There is no right or wrong way to do it.

How the Custom CSS Works

The CSS might look a little intimidating, but it's actually quite straightforward if we break it down into smaller pieces. Here's how each part contributes to the final result:

Fade Animation

@keyframes fade {
    0% { opacity: 0; }
    2% { opacity: 1; }
    95% { opacity: 1; }
    100% { opacity: 0; }
}

This rule declares a keyframe set named fade which will be used to control the visibility of chat messages over time. The resulting animation starts with the message completely invisible, quickly fades it in to full visibility by 2% of the animation duration, keeps it visible until 95% of the duration, and then fades it out by the end. This creates a smooth fade-in and fade-out effect for each chat message.

This rule by itself doesn't actually do anything; it just declares the keyframe set. The actual application of it to chat messages is implemented in the final section.

Transparent Backgrounds

body {
    background-color: #00000000 !important;
}

#chat-container {
    background-color: #00000000 !important;
}

These properties make the background of the chat completely transparent. Without it, the chat would always appear as a solid rectangle covering part of the stream, even when there are no messages.

Message Styling and Animation

#chat-container > div > div > div > div {
    background-color: #111111bb !important;
    animation: fade 60s forwards !important;
}

This is where the magic happens for individual chat messages. Two declarations work together here:
